Nomad Series
Compact Type III COPVs
Lightweight composite pressure vessels for compact, mobile, marine and space-constrained gas-storage applications.

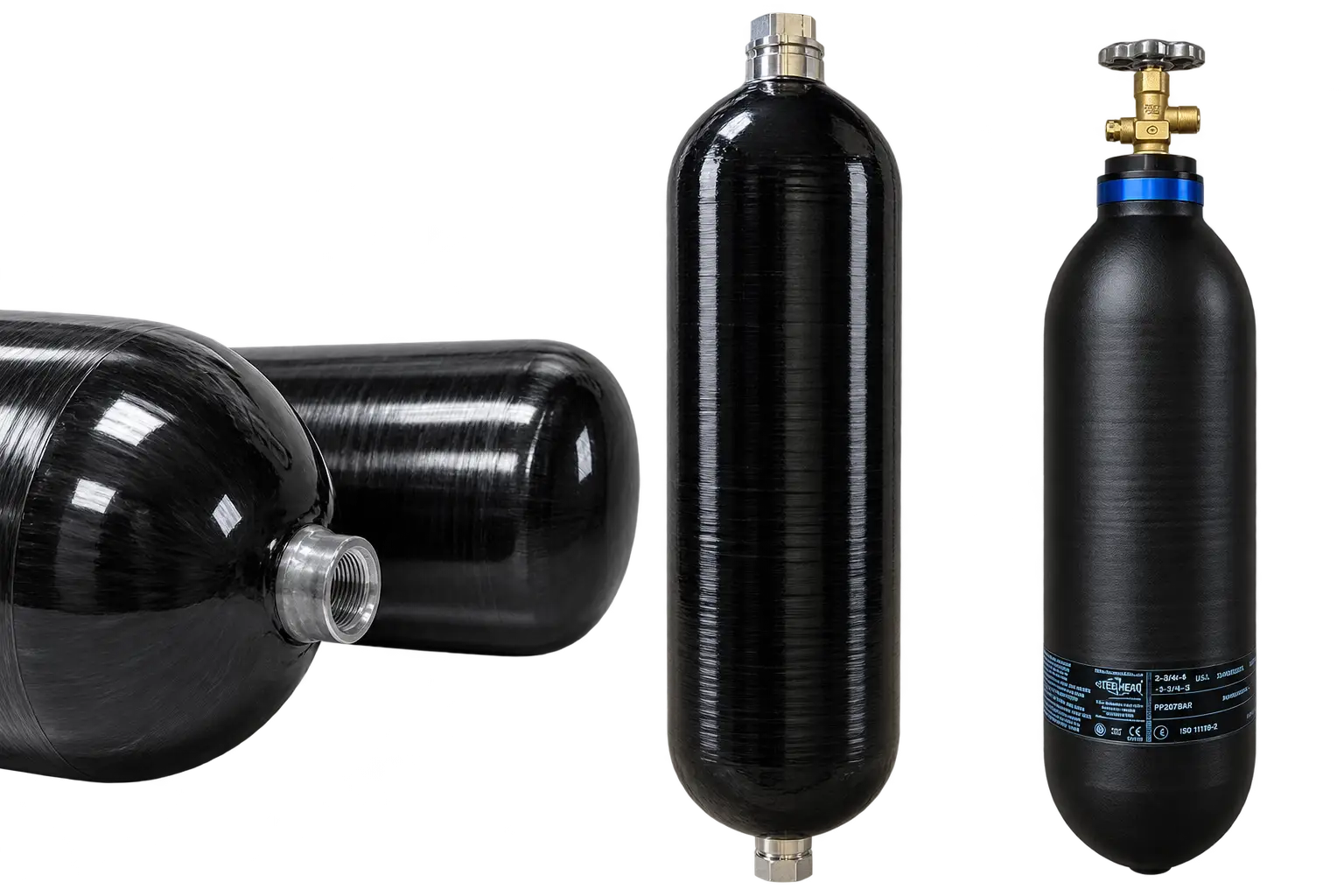

The Nomad Series brings together Steelhead's compact Type III composite overwrapped pressure vessel platforms for applications where packaging, weight, mounting and integration flexibility are central design requirements.
Compact pressure vessel platform
Three compact Type III platforms for different integration strategies.
Nomad Series products are designed for systems where vessel geometry, weight, mounting and port configuration can drive the overall package.
Trek supports compact 3000 PSI gas storage with flexible lengths and manifold options. Ranger is a 350 bar neck-mount platform built around a compact 6.7-inch diameter. Tide is a compact 3600 PSI CNG platform positioned for marine and other space-constrained CNG applications.
Nomad Series products
Choose the compact vessel around the application.
Trek, Ranger and Tide share a lightweight Type III approach while serving distinctly different pressure, mounting and application requirements.
Nomad Series

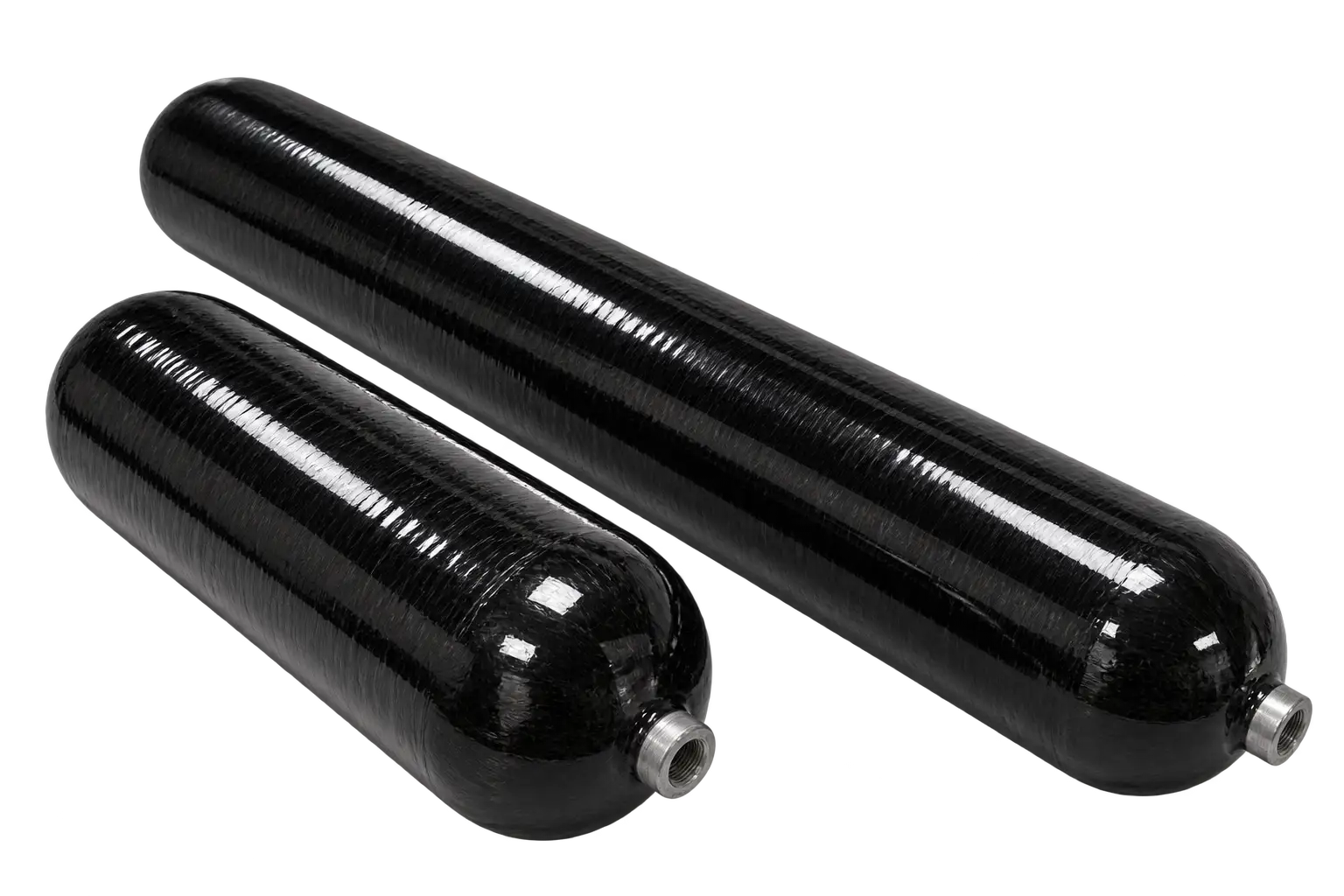

Trek
3000 PSI Gas Bottle
A compact, long-and-narrow Type III platform for lightweight high-pressure gas storage where package diameter and integration flexibility matter.
- 3000 PSI operating pressure
- 6- to 12-liter family positioning; longer/custom configurations may be considered
- Dual AS5202 / ORB-8 ports
- Strap mounting; single or manifolded systems
Nomad Series

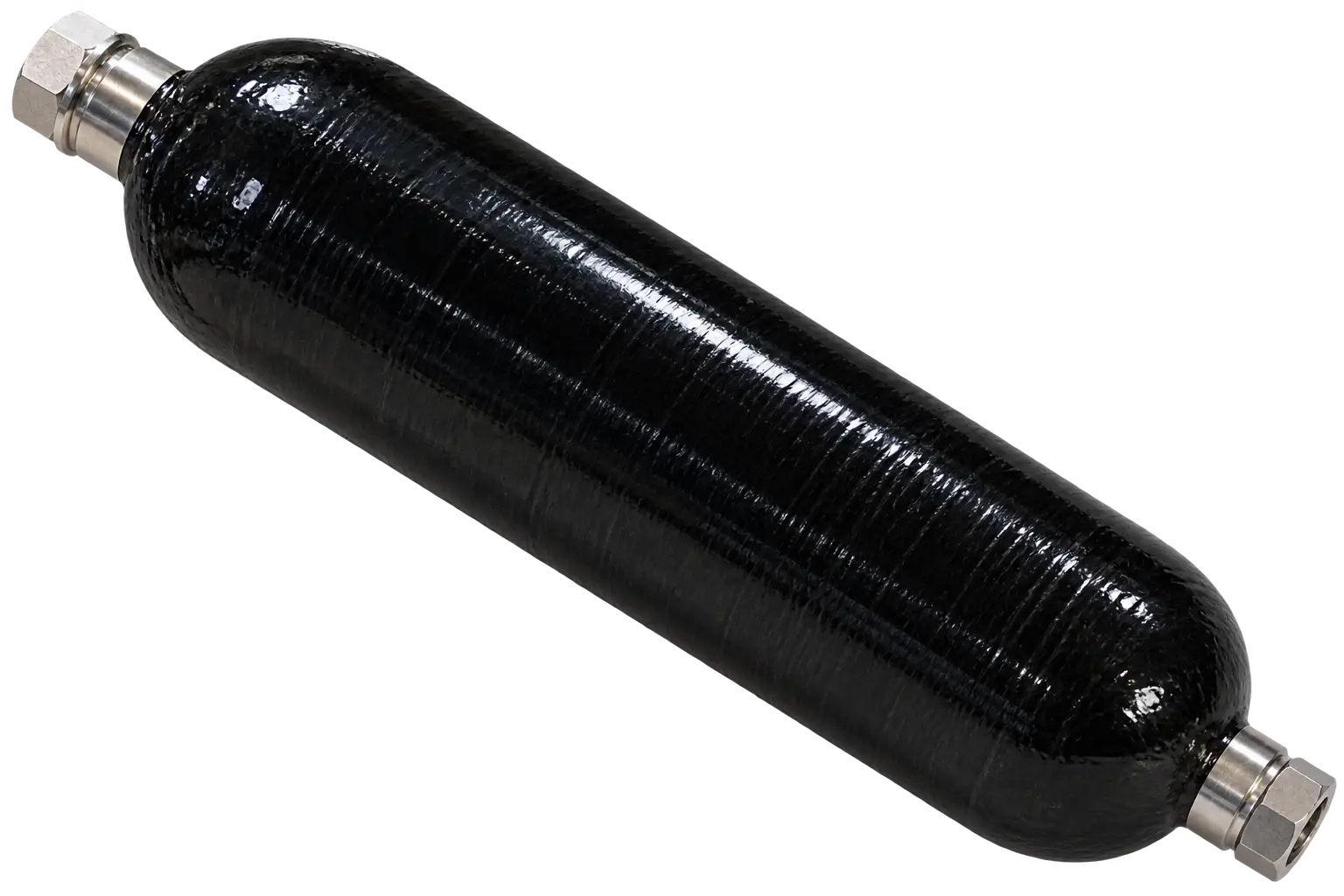

Ranger
350 Bar Neck-Mount COPV
A 6.7-inch OD Type III platform for compact systems that benefit from neck mounting and flexible port and mounting strategies.
- 350 bar / 5,077 PSI service pressure
- 6 L, 7.5 L, 11 L and 18 L
- 170 mm / 6.7-inch outside diameter
- 15-year service life; ISO 11119-2
Nomad Series

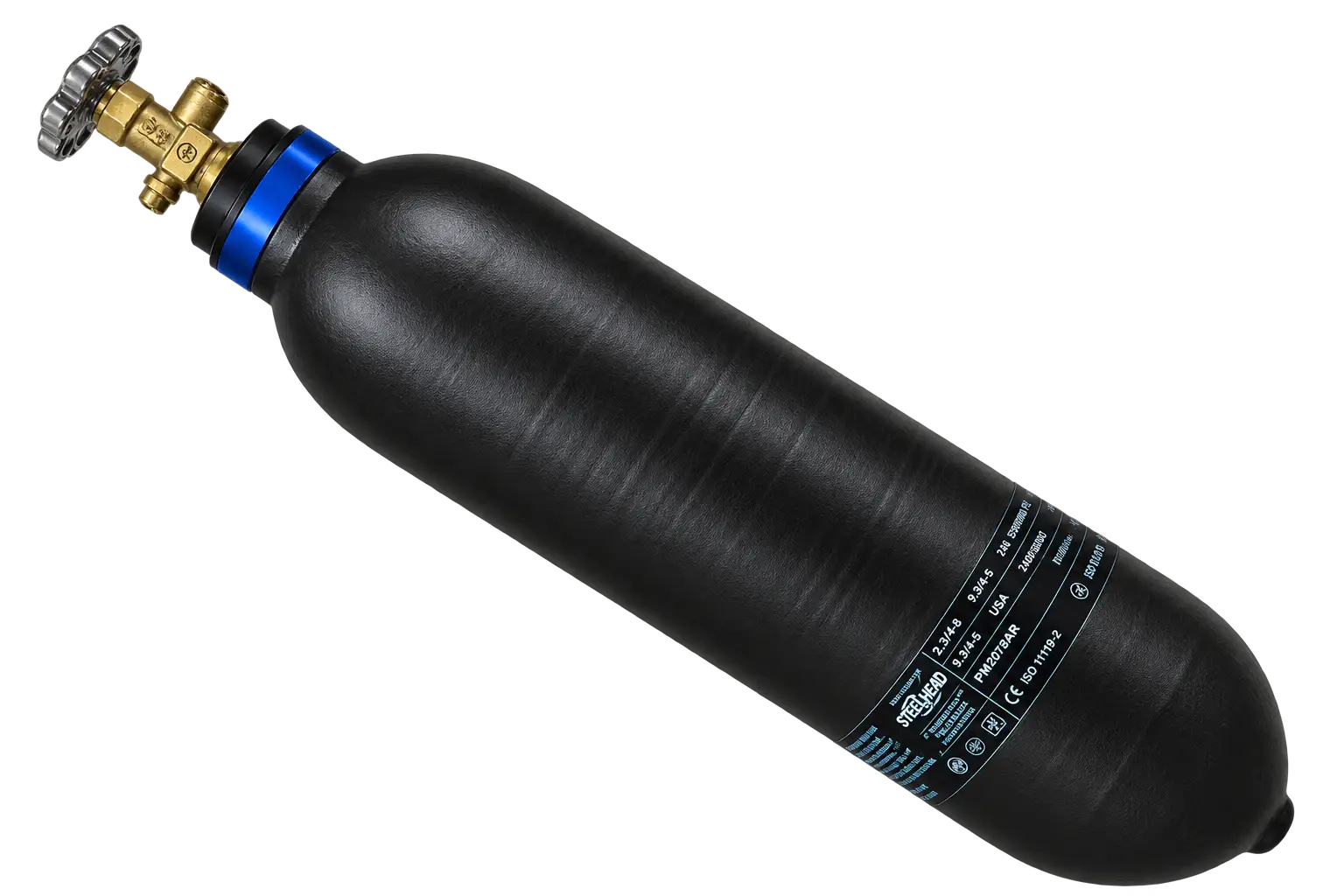

Tide
Compact CNG Cylinder
A compact 6.8-inch OD Type III CNG platform for boats, yachts and other space-constrained CNG systems where lightweight packaging and refillability matter.
- 3600 PSI CNG service
- 8 L and 10 L documented configurations
- 172.7 mm / 6.8-inch outside diameter
- Sherwood CNG valve with plugged second port
At-a-glance comparison
Nomad Series product comparison
| Product | Technical Description | Operating Pressure | Available Volume | Primary Integration |
|---|---|---|---|---|
| Trek | 3000 PSI Gas Bottle | 3000 PSI | 6–12 L family positioning; 8 L & 10 L documented in supplied table | Single or manifolded compact gas storage |
| Ranger | 350 Bar Neck-Mount COPV | 350 bar / 5,077 PSI | 6 L, 7.5 L, 11 L, 18 L | Neck-mounted systems |
| Tide | Compact CNG Cylinder | 3600 PSI | 8 L, 10 L | Marine & compact CNG storage |
Final vessel, port, valve, mounting and certification requirements should be confirmed with Steelhead engineering for the specific application.
Why Nomad
Compact packaging with application-specific engineering flexibility.
Lightweight Type III construction
Aluminum-lined composite construction reduces vessel mass while maintaining a durable high-pressure storage platform.
Multiple mounting strategies
Nomad products support strap, neck-mount and application-specific integration approaches.
Port and valve flexibility
Standard and application-specific interfaces allow engineers to match vessel connections to the system package.
Applications
Designed for compact gas-storage systems on land, at sea and in mobile equipment.
Mobile & OEM Systems
Trek supports long, narrow package envelopes and single or manifolded storage systems.
Neck-Mounted Systems
Ranger provides a compact platform for evaluating and implementing neck-mount strategies.
Marine CNG
Tide supports compact CNG storage for recreational and commercial marine applications.
Custom Integration
Steelhead can support application-specific ports, mounting, vessel length and packaging requirements.
Start a pressure vessel conversation
Which Nomad product fits your system?
Share your pressure, volume, gas, mounting, marine or mobile packaging requirements with Steelhead's engineering team.
