Nomad Series — Trek
3000 PSI Gas Bottle
Long-and-narrow Type III gas storage for compact commercial systems.
Trek gives system designers a compact 3000 PSI Type III platform that can be configured around constrained package envelopes, used individually or manifolded together for additional storage.
Compact 3000 PSI platform
Long and narrow when package space is limited.

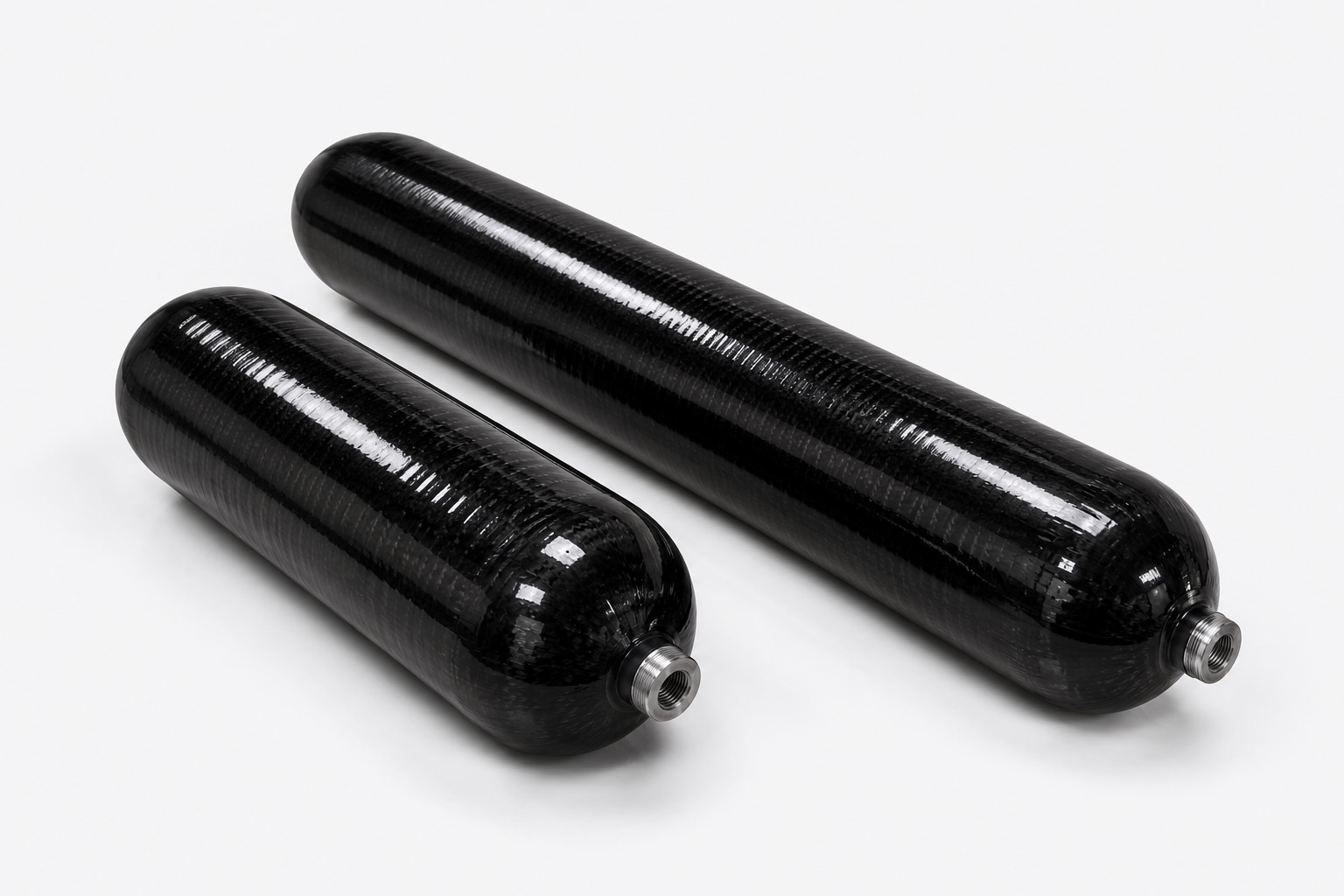

Trek is available in compact 6- to 12-liter configurations, with longer or custom versions available for applications that require additional capacity while maintaining a narrow vessel profile.
Its long, narrow geometry gives system designers flexibility in mobile, marine and OEM installations where available diameter is limited and efficient packaging is critical.
3000 PSI
High-pressure commercial gas-storage platform.
Dual ORB-8
AS5202 / ORB-8 dual-port architecture with Steelhead-made adapters available.
Strap Mounting
Designed for conventional strap-mounted installation.
Available configurations
Compact 3000 PSI vessels for space-constrained systems.
| Nominal Volume | Boss-to-Boss Length | Length with Adapter | Mass with Adapters | Outside Diameter |
|---|---|---|---|---|
| 8 L (2.1 gal) | 622 mm (24.5 in) | 652 mm (25.6 in) | 8.5 kg (18.7 lb) | 173 mm (6.8 in) |
| 10 L (2.6 gal) | 711 mm (28.0 in) | 741 mm (29.1 in) | 9.0 kg (20.0 lb) | 173 mm (6.8 in) |
Additional volumes and custom lengths may be available depending on application requirements.
Integration flexibility
Use one vessel or manifold multiple bottles together.
Sea, Land & Air
Compact gas storage for space-constrained marine, mobile and specialty installations.
Mobile Systems
Suitable where vessel footprint and mass are important to the overall equipment package.
OEM Integration
Standard configurations provide a starting point for packaged systems, with customization available for application-specific requirements.
Engineering support
Need a Trek configuration outside the standard sizes?
Discuss vessel length, volume, ports, adapters, manifold layout and mounting requirements with Steelhead's engineering team.
